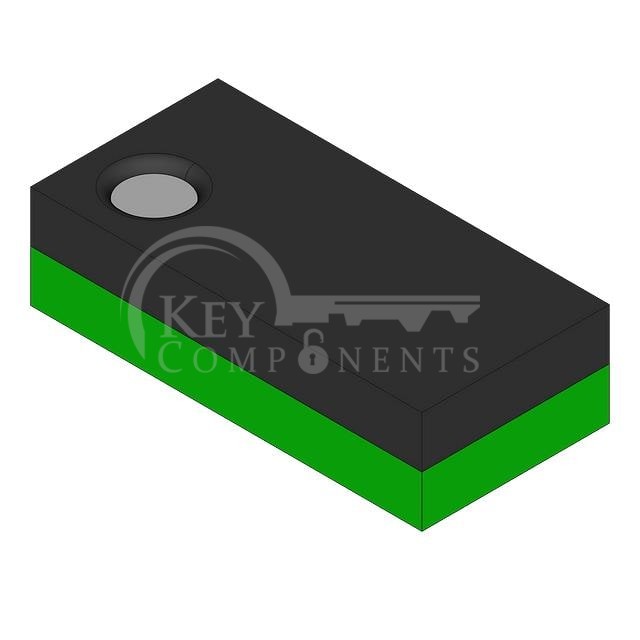

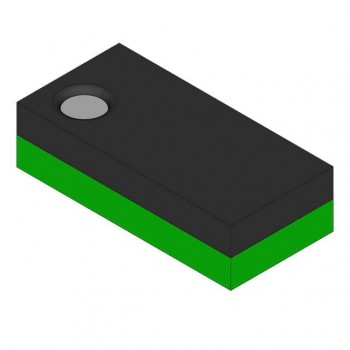

CSPEMI205G

CSPEMI205G

Manufacturer Part CSPEMI205G
Manufacturer onsemi
Description FILTER RC(PI) ESD SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:3
Center / Cutoff Frequency:34MHz, 63MHz (Cutoff)
Attenuation Value:30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms):10, 68
Current:-
Values:R = 10Ohms, 68Ohms, C = 47pF, 100pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Audio
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:8-UFBGA, CSPBGA
Size / Dimension:0.056" L x 0.056" W (1.43mm x 1.41mm)
Height:0.026" (0.65mm)
