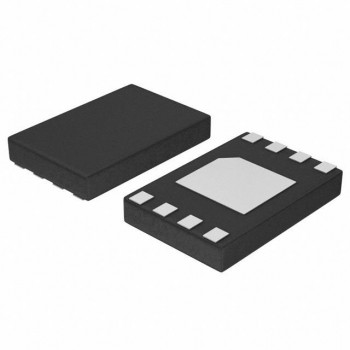

CM1692-04DE

CM1692-04DE

Manufacturer Part CM1692-04DE
Manufacturer onsemi
Description FILTER LC(PI) 17NH/11.8PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:3rd
Technology:LC (Pi)
Number of Channels:4
Center / Cutoff Frequency:-
Attenuation Value:30dB @ 1GHz
Resistance - Channel (Ohms):-
Current:30 mA
Values:L = 17nH (Total), C = 11.8pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:8-UFDFN Exposed Pad
Size / Dimension:0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:0.022" (0.55mm)
