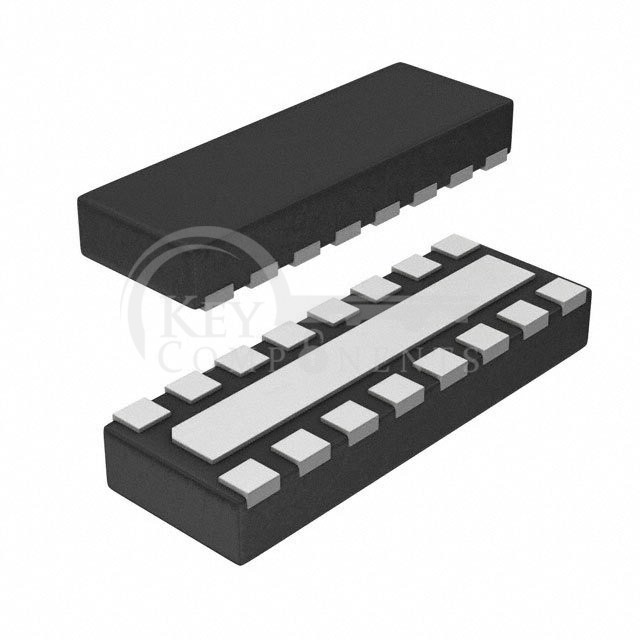

CM1624-08DE

CM1624-08DE

Manufacturer Part CM1624-08DE
Manufacturer onsemi
Description FILTER RLC 40 OHM/12PF/20NH SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:3rd
Technology:RLC
Number of Channels:6
Center / Cutoff Frequency:300MHz (Cutoff)
Attenuation Value:-
Resistance - Channel (Ohms):40
Current:-
Values:R = 40Ohms, C = 12pF, L = 20nH
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:16-UFDFN Exposed Pad
Size / Dimension:0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:0.022" (0.55mm)
