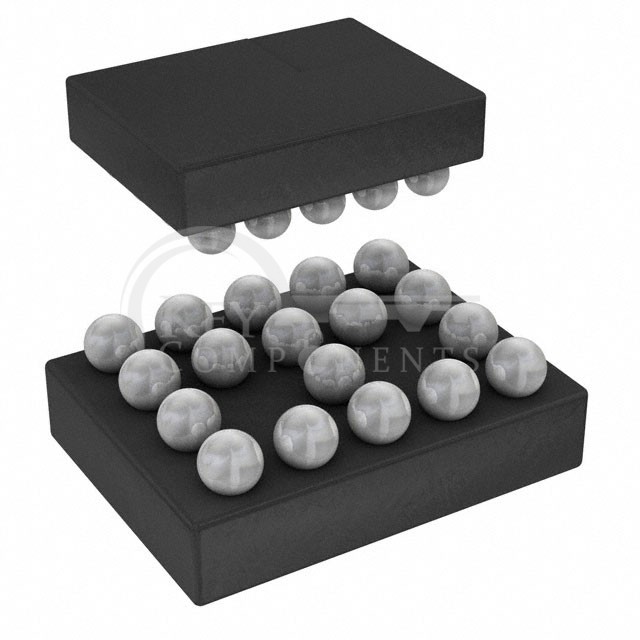

CM6317

CM6317

Manufacturer Part CM6317
Manufacturer onsemi
Description FILTER RC(PI) 70 OHM/30PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:7
Center / Cutoff Frequency:-
Attenuation Value:-
Resistance - Channel (Ohms):70
Current:-
Values:R = 70Ohms, C = 30pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:18-UFBGA, WLCSP
Size / Dimension:0.077" L x 0.061" W (1.96mm x 1.56mm)
Height:0.025" (0.64mm)
