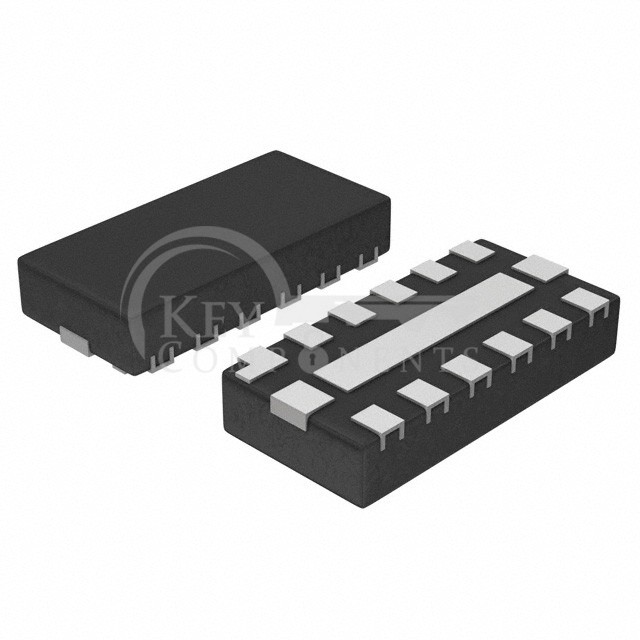

CM1621-06DE

CM1621-06DE

Manufacturer Part CM1621-06DE
Manufacturer onsemi
Description FILTER RC(PI) 100 OHM/17PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:6
Center / Cutoff Frequency:90MHz (Cutoff)
Attenuation Value:-35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 17pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:12-UFDFN Exposed Pad
Size / Dimension:0.098" L x 0.047" W (2.50mm x 1.20mm)
Height:0.022" (0.55mm)
