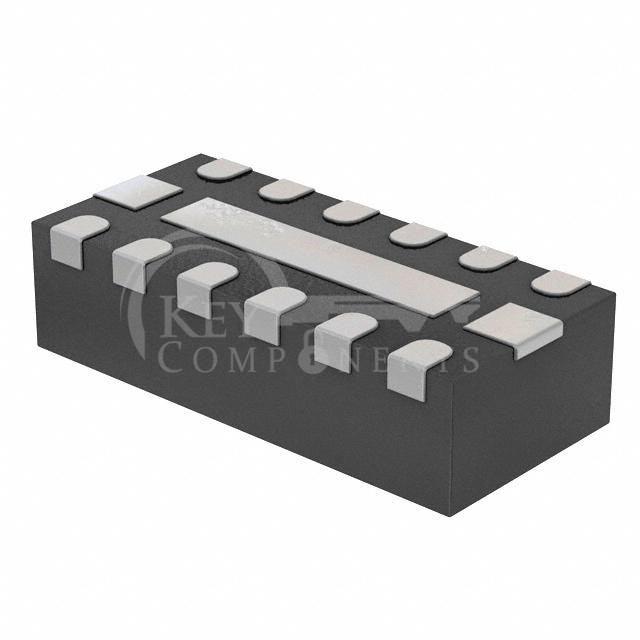

TPD6F002QDSVRQ1
| Manufacturer Part | TPD6F002QDSVRQ1 |
|---|---|
| Manufacturer | Texas Instruments |
| Description | FILTER RC(PI) 100 OHM/17PF SMD |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Low Pass |
| Filter Order: | 2nd |
| Technology: | RC (Pi) |
| Number of Channels: | 6 |
| Center / Cutoff Frequency: | 100MHz (Cutoff) |
| Attenuation Value: | -30dB @ 800MHz |
| Resistance - Channel (Ohms): | 100 |
| Current: | - |
| Values: | R = 100Ohms, C = 17pF |
| ESD Protection: | Yes |
| Operating Temperature: | -40°C ~ 125°C |
| Applications: | Automotive |
| Voltage - Rated: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 12-WFDFN Exposed Pad |
| Size / Dimension: | 0.118" L x 0.053" W (3.00mm x 1.35mm) |
| Height: | 0.032" (0.81mm) |
