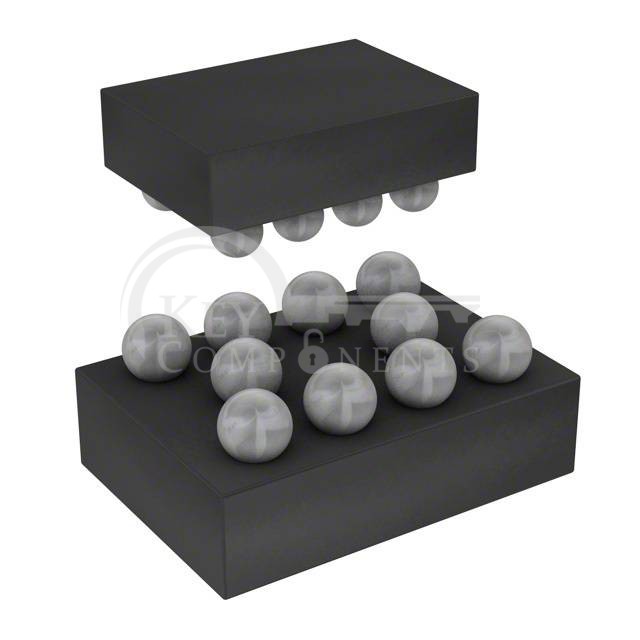

TPD4F202YFUR

TPD4F202YFUR

Manufacturer Part TPD4F202YFUR
Manufacturer Texas Instruments
Description FILTER RC(PI) 100 OHM/15PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:4
Center / Cutoff Frequency:108MHz (Cutoff)
Attenuation Value:40dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 15pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:10-XFBGA, DSBGA
Size / Dimension:0.061" L x 0.041" W (1.56mm x 1.05mm)
Height:0.014" (0.35mm)
