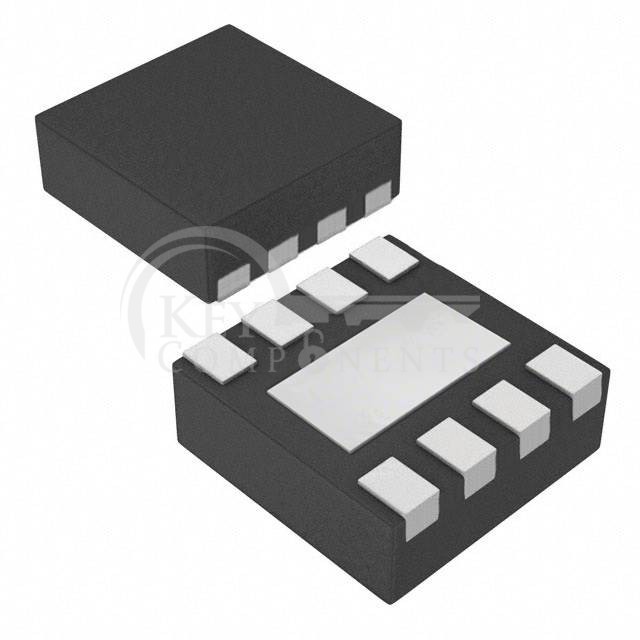

TPD3F303DQDR

TPD3F303DQDR

Manufacturer Part TPD3F303DQDR
Manufacturer Texas Instruments
Description FILTER RC(PI) ESD SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:3
Center / Cutoff Frequency:294MHz, 308MHz (Cutoff)
Attenuation Value:-
Resistance - Channel (Ohms):47, 100
Current:-
Values:R = 47Ohms, 100Ohms, C = 20pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad
Size / Dimension:0.067" L x 0.053" W (1.70mm x 1.35mm)
Height:0.031" (0.79mm)
