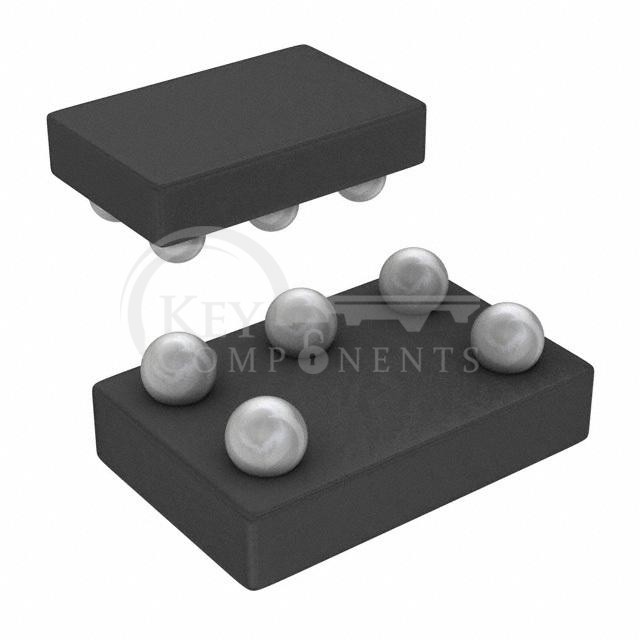

TPD2F702YFKR

TPD2F702YFKR

Manufacturer Part TPD2F702YFKR
Manufacturer Texas Instruments
Description FILTER RC(PI) 1.2MHZ ESD SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:2
Center / Cutoff Frequency:1.2MHz (Cutoff)
Attenuation Value:50dB @ 100MHz
Resistance - Channel (Ohms):15
Current:-
Values:R = 15Ohms, C = 5000pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Audio
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:5-UFBGA, DSBGA
Size / Dimension:0.036" L x 0.052" W (0.91mm x 1.31mm)
Height:0.025" (0.64mm)
