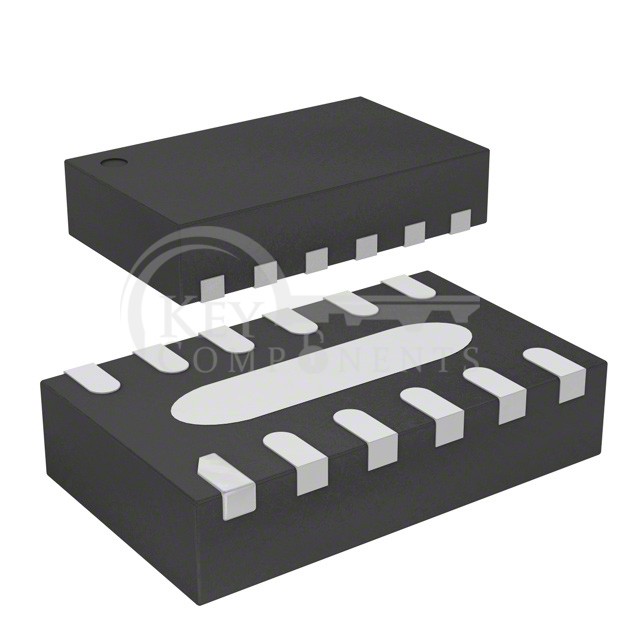

EMIF06-1005M12

EMIF06-1005M12

Manufacturer Part EMIF06-1005M12
Manufacturer STMicroelectronics
Description FILTER RC(PI) 100 OHM/45PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:6
Center / Cutoff Frequency:-
Attenuation Value:-34dB @ 900MHz ~ 1.8GHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 45pF (Total)
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:12-UFDFN Exposed Pad
Size / Dimension:0.098" L x 0.059" W (2.50mm x 1.50mm)
Height:0.024" (0.60mm)
