ECLAMP0504T.TCT

ECLAMP0504T.TCT

Manufacturer Part ECLAMP0504T.TCT
Manufacturer Semtech Corporation
Description FILTER RC 1 KOHM/12PF ESD SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:High Pass
Filter Order:1st
Technology:RC
Number of Channels:4
Center / Cutoff Frequency:-
Attenuation Value:-
Resistance - Channel (Ohms):1k
Current:2 A
Values:R = 1kOhm, C = 12pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount

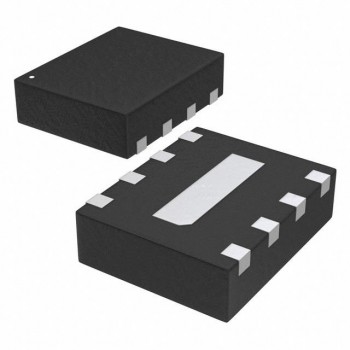

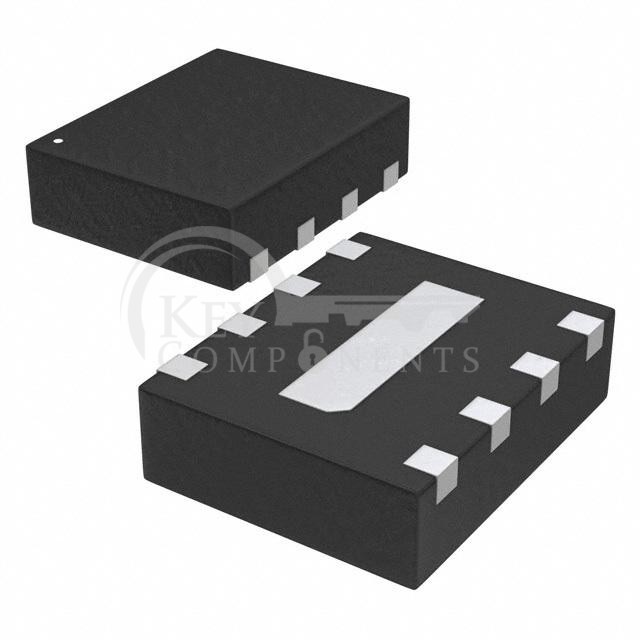

Package / Case:8-XFDFN Exposed Pad
Size / Dimension:0.083" L x 0.063" W (2.10mm x 1.60mm)
Height:0.017" (0.43mm)
