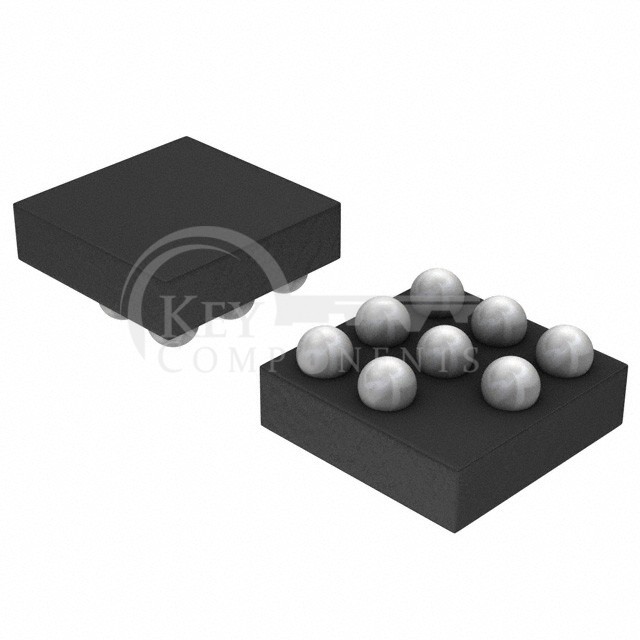

EMIF02-USB01F2

EMIF02-USB01F2

Manufacturer Part EMIF02-USB01F2
Manufacturer STMicroelectronics
Description FILTER RC(PI) ESD SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:2
Center / Cutoff Frequency:-
Attenuation Value:-
Resistance - Channel (Ohms):33, 1.3k
Current:-
Values:R = 33Ohms, 1.3kOhms, C = 40pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:USB
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:8-WFBGA, FCBGA
Size / Dimension:0.076" L x 0.050" W (1.97mm x 1.27mm)
Height:0.028" (0.70mm)
