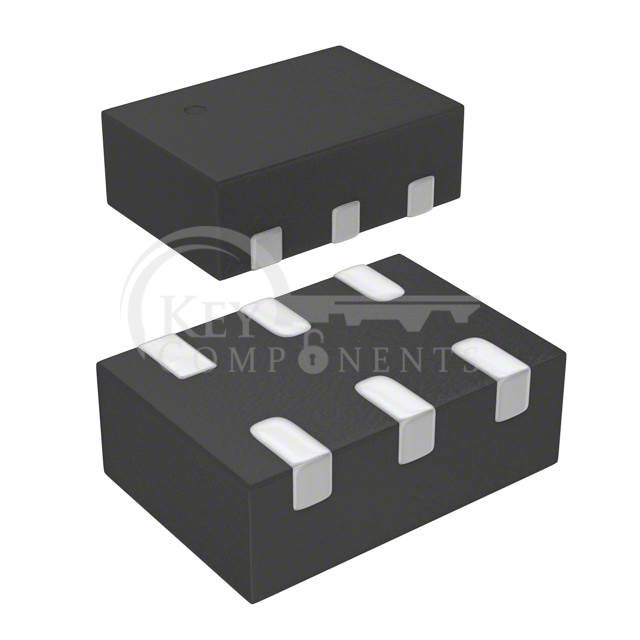

EMIF02-1003M6

EMIF02-1003M6

Manufacturer Part EMIF02-1003M6
Manufacturer STMicroelectronics
Description IC EMI FILTER 2LINE 6-MICRO QFN
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:2
Center / Cutoff Frequency:900MHz (Cutoff)
Attenuation Value:26dB @ 900MHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 30pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:6-UFDFN
Size / Dimension:0.057" L x 0.039" W (1.45mm x 1.00mm)
Height:0.024" (0.60mm)
