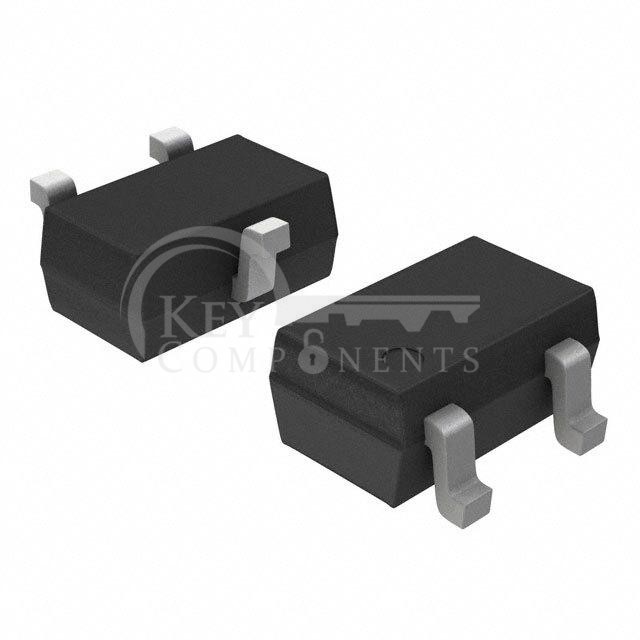

NZF220DFT1

NZF220DFT1

Manufacturer Part NZF220DFT1
Manufacturer onsemi
Description FILTER RC(PI) 110 OHM/22PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:2
Center / Cutoff Frequency:220MHz (Cutoff)
Attenuation Value:-
Resistance - Channel (Ohms):110
Current:-
Values:R = 110Ohms, C = 22pF
ESD Protection:Yes
Operating Temperature:-
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:5-TSSOP, SC-70-5, SOT-353
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height:0.043" (1.09mm)
