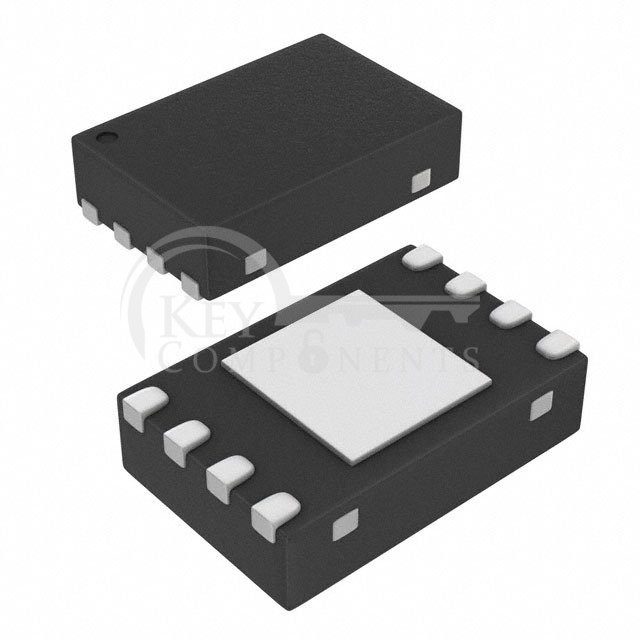

NUF2070MNT1G

NUF2070MNT1G

Manufacturer Part NUF2070MNT1G
Manufacturer onsemi
Description FILTER LC(PI) 10NH/64PF ESD SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:3rd
Technology:LC (Pi)
Number of Channels:2
Center / Cutoff Frequency:50MHz (Cutoff)
Attenuation Value:-22.5dB @ 800MHz ~ 5GHz
Resistance - Channel (Ohms):2.4
Current:-
Values:L = 10nH, C = 64pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Audio
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:8-VFDFN Exposed Pad
Size / Dimension:0.079" L x 0.079" W (2.00mm x 2.00mm)
Height:0.039" (1.00mm)
