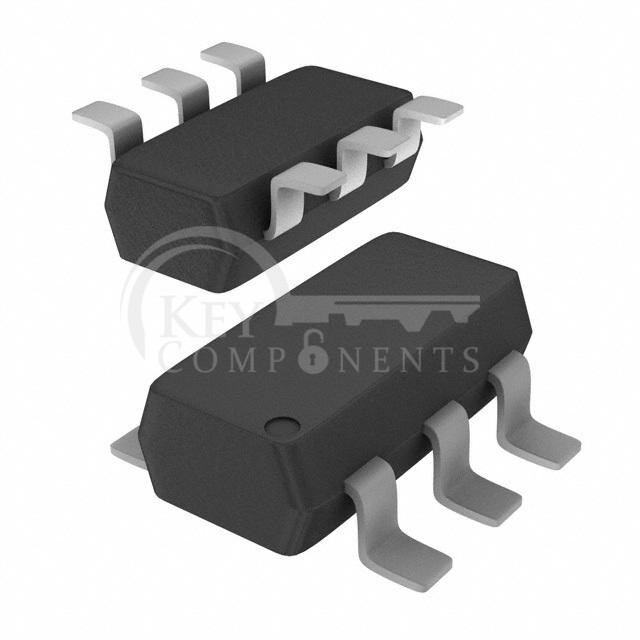

NUF2101MT1G

NUF2101MT1G

Manufacturer Part NUF2101MT1G
Manufacturer onsemi
Description FILTER RC(PI) 30 OHM/55PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:3
Center / Cutoff Frequency:-
Attenuation Value:-
Resistance - Channel (Ohms):30
Current:-
Values:R = 30Ohms, C = 55pF (Total)
ESD Protection:Yes
Operating Temperature:-55°C ~ 125°C
Applications:USB
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:SC-74, SOT-457
Size / Dimension:0.118" L x 0.059" W (3.00mm x 1.50mm)
Height:0.043" (1.09mm)
