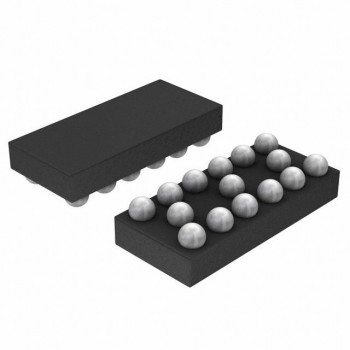

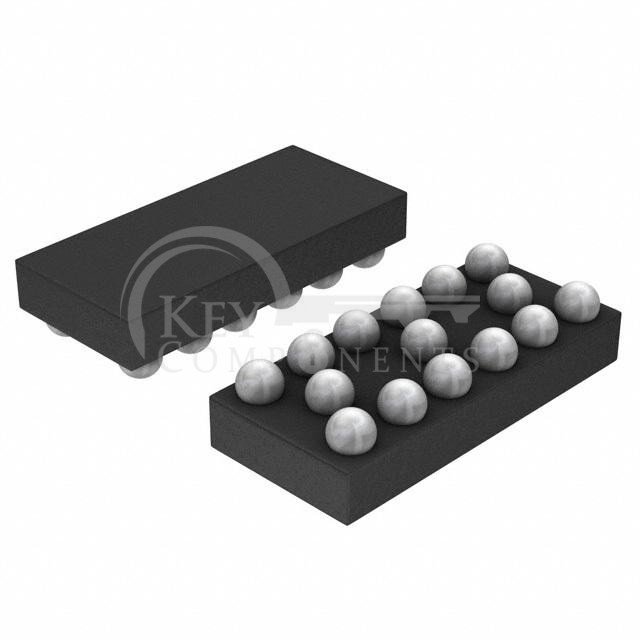

NUF6105FCT1

NUF6105FCT1

Manufacturer Part NUF6105FCT1
Manufacturer onsemi
Description FILTER RC(PI) 100 OHM/27PF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:6
Center / Cutoff Frequency:100MHz (Cutoff)
Attenuation Value:-35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 27pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:15-WFBGA, FCBGA
Size / Dimension:0.117" L x 0.052" W (2.96mm x 1.33mm)
Height:0.028" (0.70mm)
