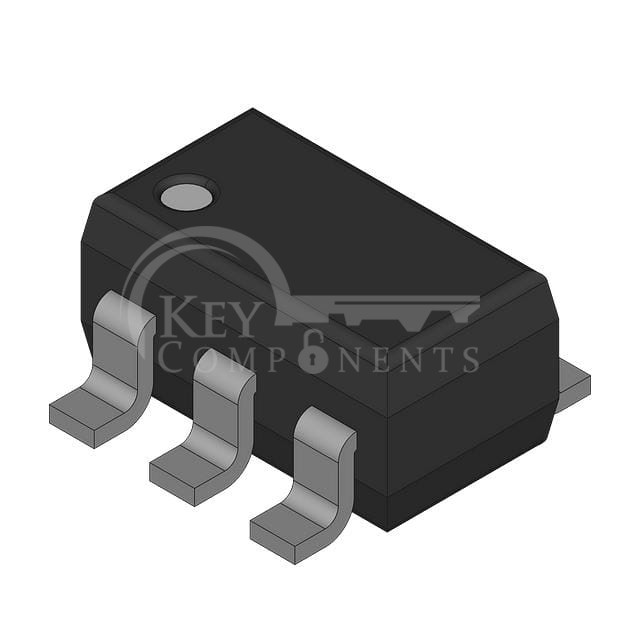

ILC7082AIM525X

ILC7082AIM525X

Manufacturer Part ILC7082AIM525X
Manufacturer Fairchild Semiconductor
Description IC REG LINEAR FIXED LDO REG
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):13V
Voltage - Output (Min/Fixed):2.5V
Voltage - Output (Max):-
Voltage Dropout (Max):0.3V @ 150mA
Current - Output:150mA
Current - Quiescent (Iq):220 µA
Current - Supply (Max):280 µA
PSRR:85dB ~ 60dB (1kHz ~ 1MHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-23-5
