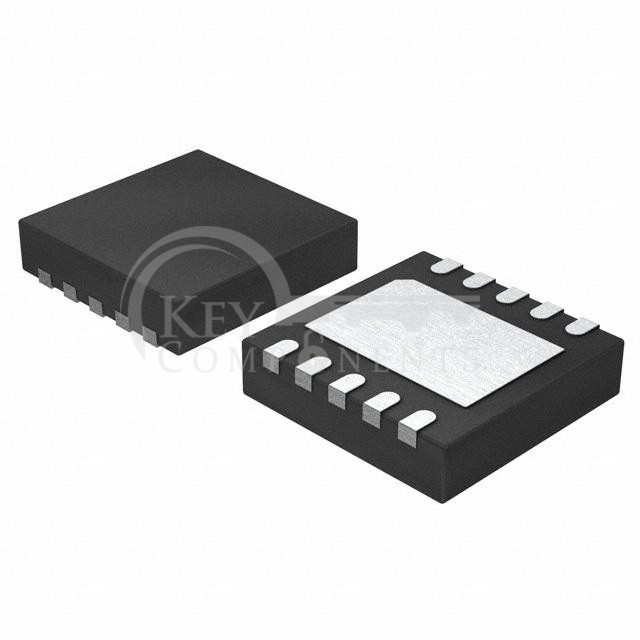

ISL78302ARFWZ

ISL78302ARFWZ

Manufacturer Part ISL78302ARFWZ
Manufacturer Renesas Electronics America Inc
Description IC REG LINEAR 1.2V/2.5V 10DFN
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:2
Voltage - Input (Max):6.5V
Voltage - Output (Min/Fixed):1.2V, 2.5V
Voltage - Output (Max):-
Voltage Dropout (Max):-, 0.3V @ 300mA (Typ)
Current - Output:300mA, 300mA
Current - Quiescent (Iq):36 µA
Current - Supply (Max):55 µA
PSRR:-
Control Features:Enable, Power On Reset
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:10-VFDFN Exposed Pad
Supplier Device Package:10-DFN (3x3)
