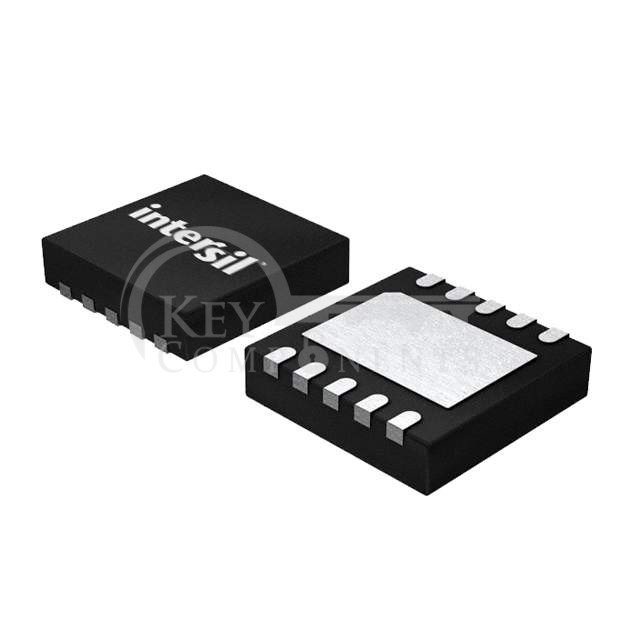

ISL80101AIRAJZ

ISL80101AIRAJZ

Manufacturer Part ISL80101AIRAJZ
Manufacturer Renesas Electronics America Inc
Description IC REG LINEAR POS ADJ 1A 10DFN
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):6V
Voltage - Output (Min/Fixed):0.8V
Voltage - Output (Max):5V
Voltage Dropout (Max):0.212V @ 1A
Current - Output:1A
Current - Quiescent (Iq):5 mA
Current - Supply (Max):7 mA
PSRR:48dB (120Hz ~ 1kHz)
Control Features:Current Limit, Enable, Power Good, Soft Start
Protection Features:Over Temperature
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:10-VFDFN Exposed Pad
Supplier Device Package:10-DFN (3x3)
