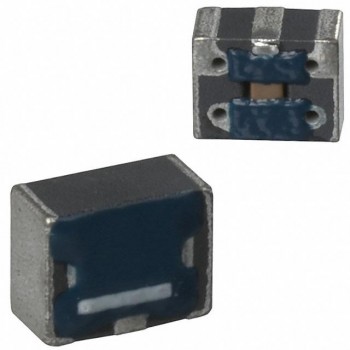

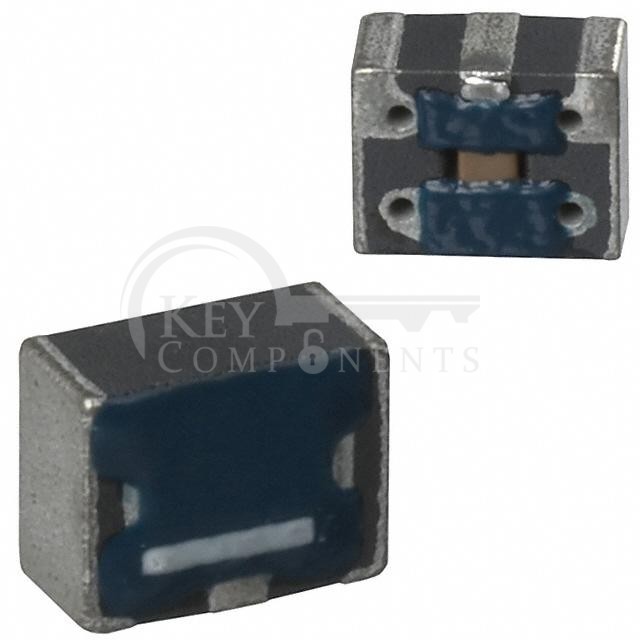

ACH3218-222-TD01
| Manufacturer Part | ACH3218-222-TD01 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FILTER LC(T) SMD |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Last Time Buy |
| Type: | Low Pass |
| Filter Order: | 3rd |
| Technology: | LC (T-Type) |
| Number of Channels: | 1 |
| Center / Cutoff Frequency: | - |
| Attenuation Value: | 25dB @ 45MHz ~ 105MHz |
| Resistance - Channel (Ohms): | 0.06 |
| Current: | 1.5 A |
| Values: | - |
| ESD Protection: | No |
| Operating Temperature: | -40°C ~ 125°C |
| Applications: | General Purpose |
| Voltage - Rated: | 20V |
| Mounting Type: | Surface Mount |
| Package / Case: | 1210 (3225 Metric), 3 PC Pad |
| Size / Dimension: | 0.071" Dia x 0.126" L (1.80mm x 3.20mm) |
| Height: | 0.108" (2.75mm) |
