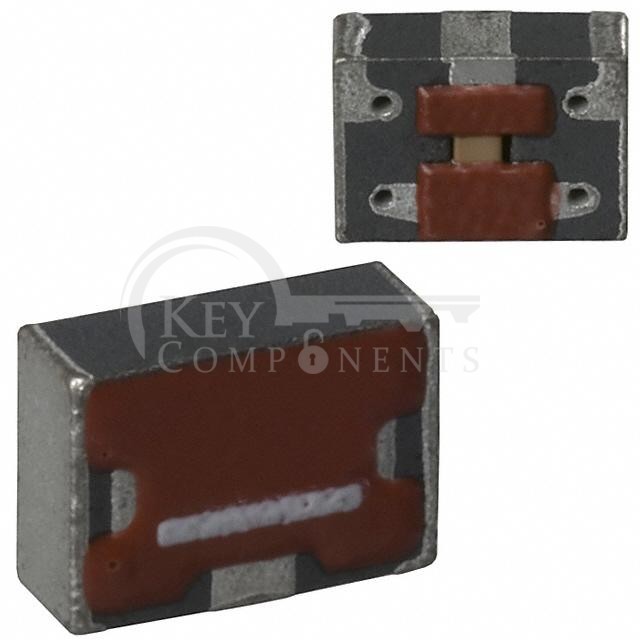

ACF451832-222-TD01
| Manufacturer Part | ACF451832-222-TD01 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FILTER LC(T) SMD |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Last Time Buy |
| Type: | Low Pass |
| Filter Order: | 3rd |
| Technology: | LC (T-Type) |
| Number of Channels: | 1 |
| Center / Cutoff Frequency: | - |
| Attenuation Value: | 25dB @ 40MHz ~ 110MHz |
| Resistance - Channel (Ohms): | 0.15 |
| Current: | 300 mA |
| Values: | - |
| ESD Protection: | No |
| Operating Temperature: | -25°C ~ 85°C |
| Applications: | Data Lines for Mobile Devices |
| Voltage - Rated: | 50V |
| Mounting Type: | Surface Mount |
| Package / Case: | 1812 (4532 Metric), 3 PC Pad |
| Size / Dimension: | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height: | 0.079" (2.00mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
