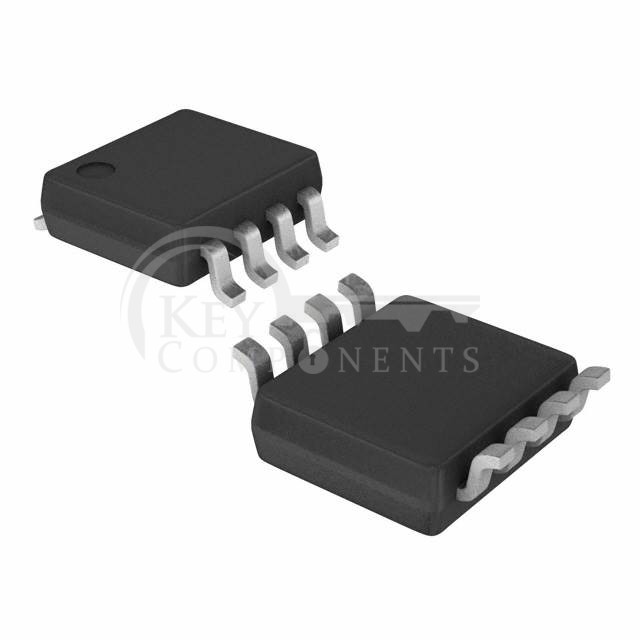

TXS0102DCUT
| Manufacturer Part | TXS0102DCUT |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC TRNSLTR BIDIRECTIONAL 8VSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Translator Type: | Voltage Level |
| Channel Type: | Bidirectional |
| Number of Circuits: | 1 |
| Channels per Circuit: | 2 |
| Voltage - VCCA: | 1.65 V ~ 3.6 V |
| Voltage - VCCB: | 2.3 V ~ 5.5 V |
| Input Signal: | - |
| Output Signal: | - |
| Output Type: | Open Drain, Push-Pull |
| Data Rate: | 24Mbps |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Features: | Auto-Direction Sensing |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package: | 8-VSSOP |
