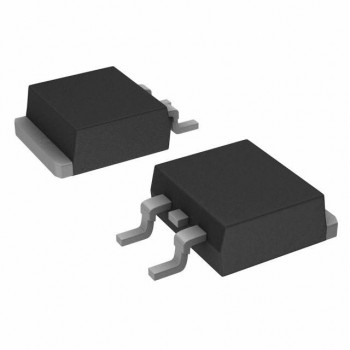

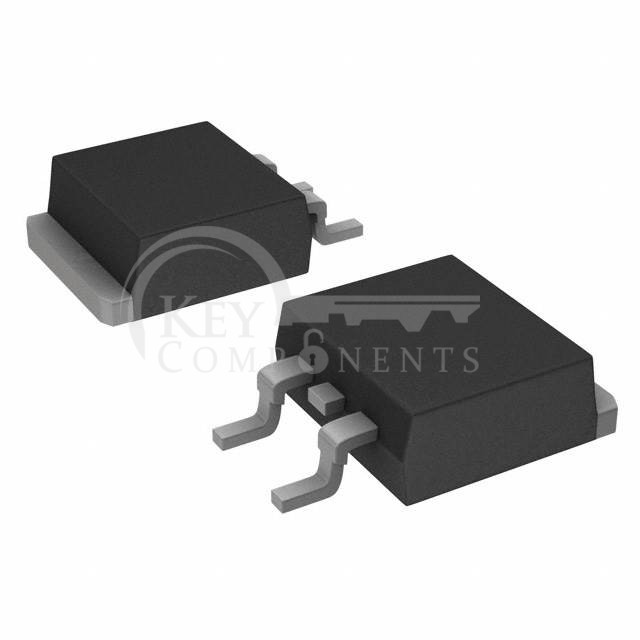

NCP565D2T12R4G
| Manufacturer Part | NCP565D2T12R4G |
|---|---|
| Manufacturer | onsemi |
| Description | 1.5 AMP LOW DROPOUT LINEAR REGUL |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 9V |
| Voltage - Output (Min/Fixed): | 1.2V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | - |
| Current - Output: | 1.5A |
| Current - Quiescent (Iq): | 3 mA |
| Current - Supply (Max): | - |
| PSRR: | 85dB ~ 75db (120Hz ~ 1kHz) |
| Control Features: | - |
| Protection Features: | Over Current, Over Temperature |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package: | D2PAK-3 |
