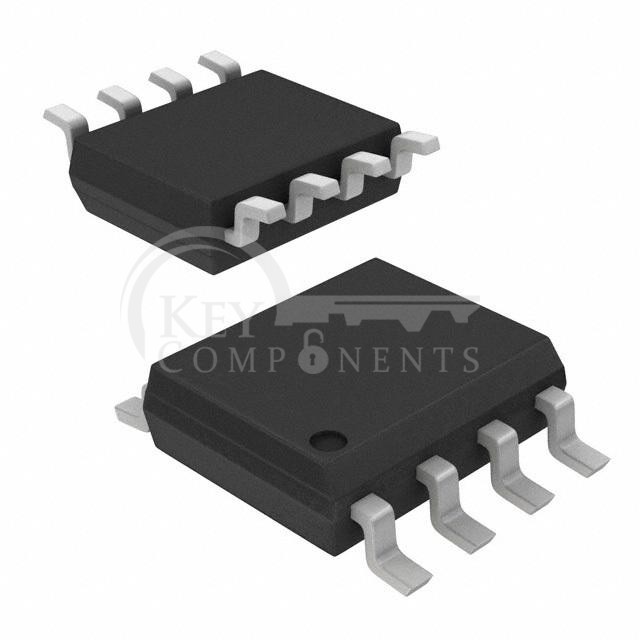

MC78L05ABDR2
| Manufacturer Part | MC78L05ABDR2 |
|---|---|
| Manufacturer | onsemi |
| Description | IC REG LINEAR 5V 100MA 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 30V |
| Voltage - Output (Min/Fixed): | 5V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | - |
| Current - Output: | 100mA |
| Current - Quiescent (Iq): | 6 mA |
| Current - Supply (Max): | - |
| PSRR: | 49dB (120Hz) |
| Control Features: | - |
| Protection Features: | Over Temperature, Short Circuit |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
