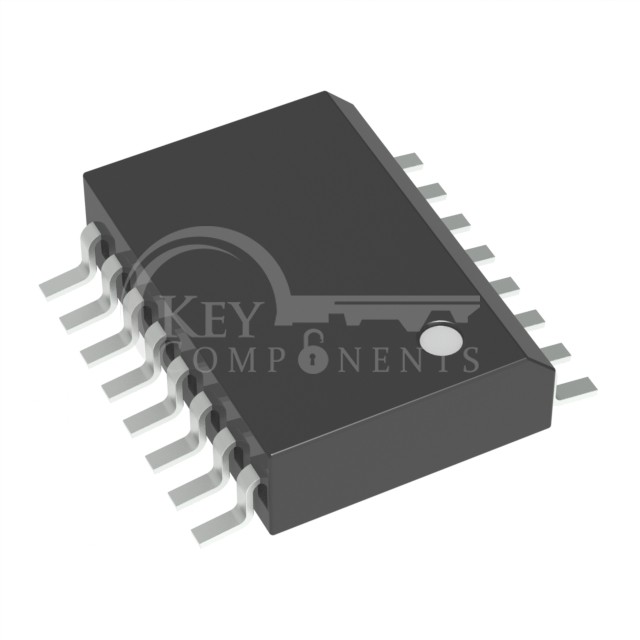

LM2574DW-ADJR2G
| Manufacturer Part | LM2574DW-ADJR2G |
|---|---|
| Manufacturer | onsemi |
| Description | IC REG MULTI CONFG ADJ 16SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration: | Positive or Negative |
| Topology: | Buck, Boost, Buck-Boost |
| Output Type: | Adjustable |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 4.75V |
| Voltage - Input (Max): | 40V |
| Voltage - Output (Min/Fixed): | 1.23V |
| Voltage - Output (Max): | 37V |
| Current - Output: | 500mA |
| Frequency - Switching: | 52kHz |
| Synchronous Rectifier: | No |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC |
