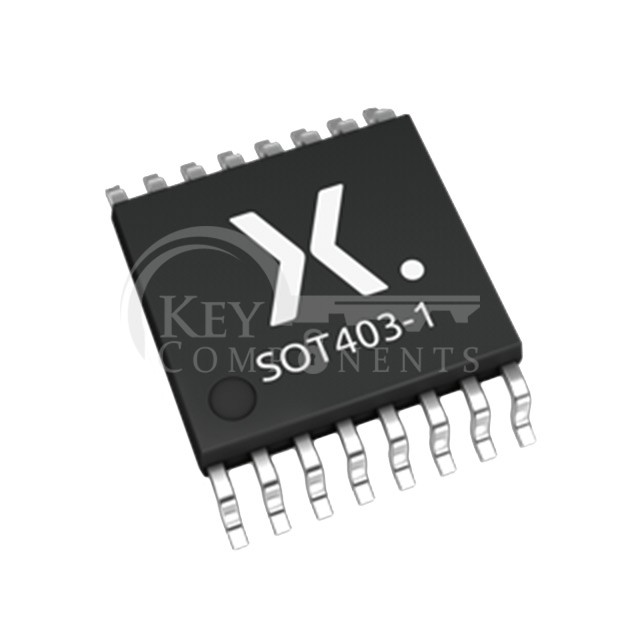

Manufacturer Part | HEF4053BTT-Q100J |
---|---|
Manufacturer | Nexperia USA Inc. |
Description | IC ANLG SWITCH TRPL SPDT 16TSSOP |
Category | Integrated Circuits (ICs) |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Switch Circuit: | SPDT |
Multiplexer/Demultiplexer Circuit: | 2:1 |
Number of Circuits: | 3 |
On-State Resistance (Max): | 155Ohm |
Channel-to-Channel Matching (ΔRon): | 5Ohm |
Voltage - Supply, Single (V+): | 3V ~ 15V |
Voltage - Supply, Dual (V±): | - |
Switch Time (Ton, Toff) (Max): | - |
-3db Bandwidth: | 70MHz |
Charge Injection: | - |
Channel Capacitance (CS(off), CD(off)): | 7.5pF |
Current - Leakage (IS(off)) (Max): | 200nA |
Crosstalk: | -50dB @ 1MHz |
Operating Temperature: | -40°C ~ 125°C (TA) |
Mounting Type: | Surface Mount |
Package / Case: | 16-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package: | 16-TSSOP |
Shipping Type | Ship Fee | Lead Time |
DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment method | Hand Fee |
Telegraphic Transfer | charge US$30.00 banking fee. |
Paypal | charge 4.0% service fee. |
Credit Card | charge 4% service fee. |
Western Union | charge US$0.00 banking fee. |
Money Gram | charge US$0.00 banking fee. |
