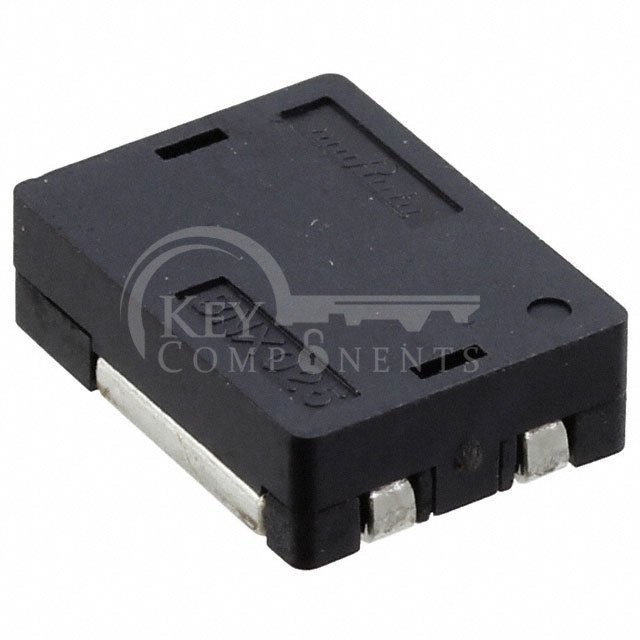

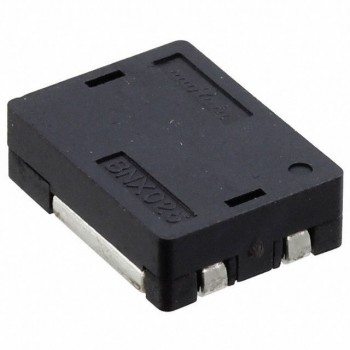

BNX022-01B

BNX022-01B

Manufacturer Part BNX022-01B
Manufacturer Murata Electronics
Description FILTER LC 1UF SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Low Pass
Filter Order:5th
Technology:LC
Number of Channels:2
Center / Cutoff Frequency:-
Attenuation Value:35dB @ 1MHz ~ 1GHz
Resistance - Channel (Ohms):0.00043
Current:10 A
Values:C = 1µF
ESD Protection:No
Operating Temperature:-40°C ~ 125°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:50V
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.476" L x 0.358" W (12.10mm x 9.10mm)
Height:0.130" (3.30mm)
