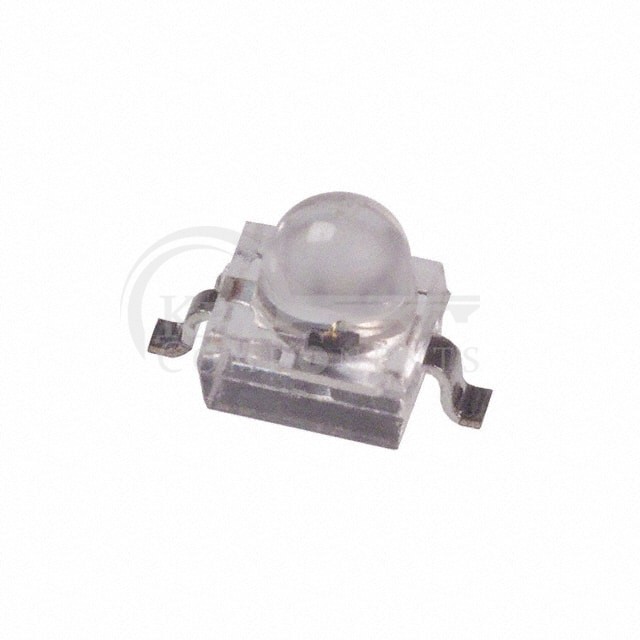

AM2520SGC09
| Manufacturer Part | AM2520SGC09 |
|---|---|
| Manufacturer | Kingbright |
| Description | LED GREEN CLEAR SMD |
| Category | Optoelectronics |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Color: | Green |
| Configuration: | Standard |
| Lens Color: | Colorless |
| Lens Transparency: | Clear |
| Millicandela Rating: | 90mcd |
| Lens Style: | Round with Domed Top |
| Lens Size: | 1.90mm Dia |
| Voltage - Forward (Vf) (Typ): | 2.2V |
| Current - Test: | 20mA |
| Viewing Angle: | 20° |
| Mounting Type: | Surface Mount, Bottom Entry |
| Wavelength - Dominant: | 568nm |
| Wavelength - Peak: | 565nm |
| Features: | - |
| Package / Case: | 2-SMD, Z-Bend |
| Supplier Device Package: | SMD |
| Size / Dimension: | 2.50mm L x 2.00mm W |
| Height (Max): | 2.90mm |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
