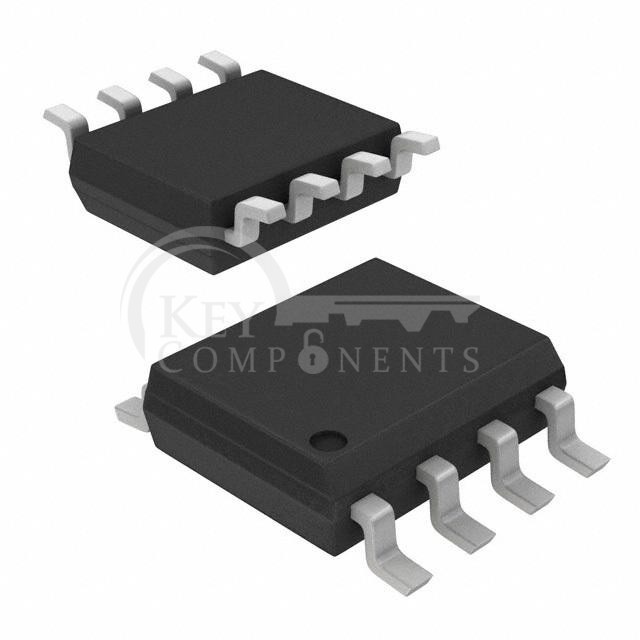

ISP772TFUMA1

ISP772TFUMA1

Manufacturer Part ISP772TFUMA1
Manufacturer Infineon Technologies
Description IC PWR SWITCH N-CHAN 1:1 DSO-8
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:5V ~ 34V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):2.6A
Rds On (Typ):50mOhm
Input Type:Non-Inverting
Features:Auto Restart
Fault Protection:Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature:-30°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:PG-DSO-8-24
Package / Case:8-SOIC (0.154", 3.90mm Width)
